OE number	Reference info
OE Number

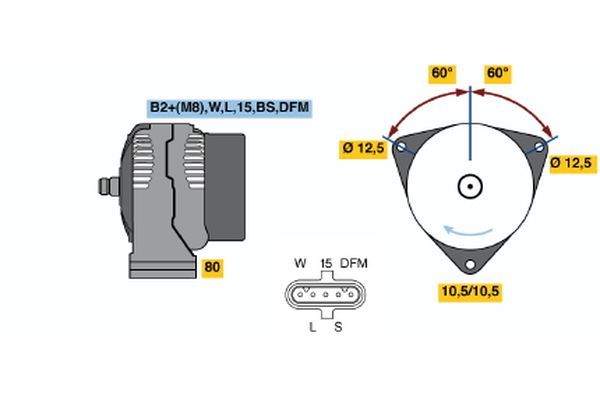

Alternator (80a) - 0124555032

Be the first to review this product

Cross References: Mercedes Benz OE no.: 0131547802 Bosch OEM no.: 0124555001 Voltage: 24V Alternator Charge Current [A]: 80 Major Applications: Make Model Mercedes-Benz Actros/Antos/Arocs/Axor OM 457 LA, OM 501/502 LA, OM 906/926 LA engine Mercedes-Benz Atego/Econic OM 904 LA, OM 906 LA, OM 924 LA, OM 926 LA, M 906 LAG engine Mercedes-Benz O 500-Series / Setra S 400-/S 500-Series OM 457 LA, OM 904 LA, OM 906 LA, OM 924 LA, OM 926 LA engine

cross refernce: 0131547802, 0124555001

Vendor: iroll-vendor-local-disclosed-2

Brand information -

Brand	BOSCH
Article number	0 124 555 032
Product group	Alternator
GTIN/EAN	3165141010978
Trade numbers	NCB1 (>) 28V 35/80A
Replaced by	0 124 555 065

Criteria -
Voltage [V]	28
Alternator Charge Current [A]	80
Fastening Type	Single pivoted lever
Alternator Type	excl. vacuum pump
Rotation Direction	Clockwise rotation
Length [mm]	190
Recommended Additional Repairs	V-Belt/V-Ribbed Belt

Article number	Description	Quntity
F 00M 130 112	Stator, alternator	1
F 00M 131 684	Rotor, alternator	1
F 00M 133 290	Rectifier, alternator	1
F 00M 144 123	Regulator, alternator	1
F 00M 146 050	Protective Cap, alternator	1
F 00M 147 863	Screw Set, alternator	1
F 00M 147 864	Screw Set, alternator regulator	1
F 00M 990 400	Slip Ring Bearing, alternator	1
F 00M 990 434	Drive Bearing, alternator	1
